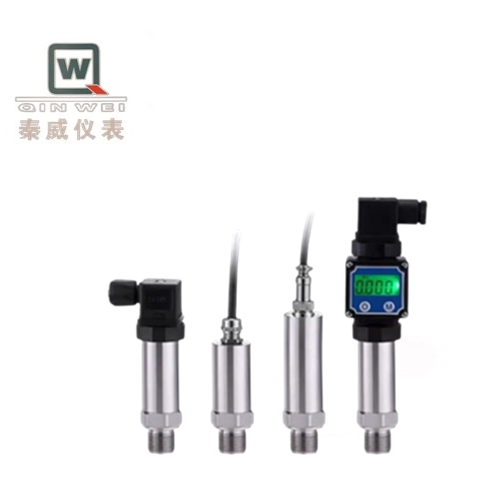

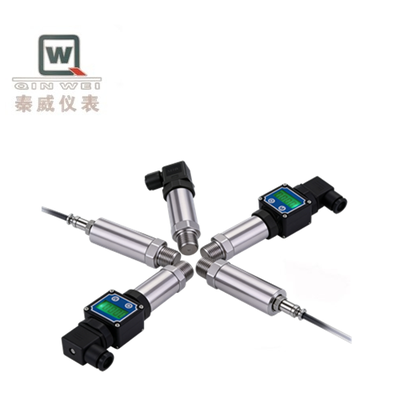

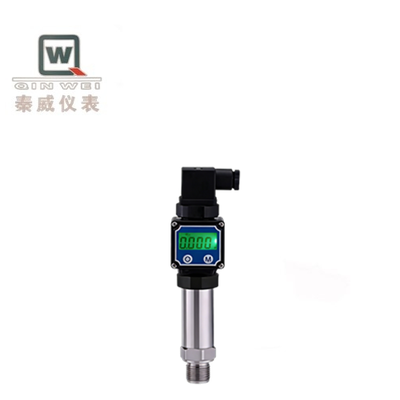

Name: Digital Display Temperature Transmitter 4-20mA Diffused Silicon Pressure Sensor
Brand: Xi 'an Qinwei Instrument Factory (General Partnership Enterprise)
SKU: QWY-30
Availability: InStock

Home Products Digital Pressure Transmitter

Digital Display Temperature Transmitter 4-20mA Diffused Silicon Pressure Sensor

Product Details:

Place of Origin:	China
Brand Name:	QINWEIYB
Model Number:	QWY-30

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100PCS/Month

Contact Now

Detailed Product Description

Proof Pressure:	150 % FS	Housing Material:	Plastic
Product Name:	Digital Pressure Transmitter	Output:	4 ~ 20mA
Size:	NPT 1-4 NPT 3-8 Adapter	Measuring Range:	0 ... 1mH2O To 0 ... 1500mH2O
Pressure Type:	Gauge, Absolute, Sealed Gauge	Ingress Protection:	IP67
Diaphragm Material:	SS316L	Thread:	6.35*0.8 NPT1/8 NPT1/4
Highlight:	Digital Display Temperature Transmitter 4-20mA , Digital Display Pressure Sensor 4-20mA , Diffused Silicon Pressure Sensor

4-20mA Digital Display Pressure Transmitter With Imported Diffused Silicon Pressure Sensor

The core of the pressure transmitter adopts a diffused silicon sensor. The dedicated integrated circuit inside converts the millivolt signal of the sensor into a standard current signal, which can be directly connected to computer interface cards, control instruments, intelligent instruments or PLCs, etc. For long-distance transmission, current output can be adopted.

Multiple thread specifications; suitable for water, steam, liquid and oil; accuracy up to 0.075 grade.

Pressure type	Gauge pressure (default), absolute pressure
Accuracy grade	0.2 grade (default), 0.1 grade high precision, 0.075 grade (customized)
Power supply voltage	12-32VDC working voltage
Output signal	4-20mA (default), 0-5V/0-10V (optional)
Measured medium	Liquid or gas (compatible with 316L stainless steel material)
Thread interface	M201.5 (default), NPT1/4, M141.5, G1/2, G1/4, NPT1/4
Range	-0.1MPa to 60MPa, customizable at factory according to requirements
Working conditions	Medium temperature -25℃ to 80℃, ambient temperature -25℃ to 80℃
Overload pressure	200% overload below 16Mpa, 150% overload above 16Mpa
Response speed	Overall <8ms
Stability	≤±0.2%FS/year

Small in size, light in weight, strong anti-interference ability, and good long-term stability.
So fast that you won't feel it. The overall response time is less than 8ms, and the highest can reach 90% of the final value within 1ms.
Only with small drift can it be used for a long time. The temperature drift is less than or equal to 0.01%FS/°C.
