Electromagnetic Flowmeter for Textile Dyeing Wastewater & Chemical Dosing: Corrosion-Resistant Case

Textile Dyeing Wastewater & Chemical Dosing — Electromagnetic Flowmeter Application

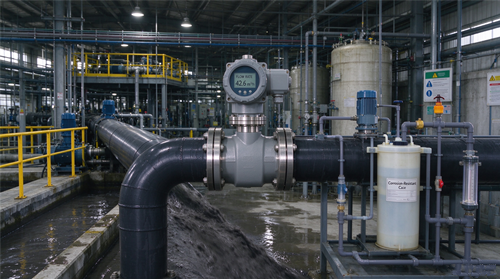

A textile dyeing and finishing mill processing woven cotton and polyester blends faced two critical flow-measurement duties running three shifts a day: dyeing wastewater discharge and chemical dosing of caustic soda, reactive dyes and finishing agents. Because effluent pH typically swings between 6 and 11 and conductivity stays well above 5 mS/cm, a conductive-liquid meter was the only practical choice — an electromagnetic flowmeter installed directly in the pipeline.

Working Condition

• Media: alkaline and acidic dyeing effluent, plus caustic and dye dosing lines.
• pH approximately 6–11; conductivity above 5 mS/cm.
• Continuous three-shift production with frequent recipe changes.
• Effluent line partially buried and exposed to washdown and damp pits.

Customer Pain Points

The plant's earlier meters did not survive the duty. Aggressive alkaline and acidic effluent corroded the wetted parts and caused readings to drift; lint, fiber and dye particles fouled the electrodes, forcing frequent manual cleaning; and dosing accuracy had to follow fabric throughput closely to avoid over- or under-dosing. The buried effluent line also demanded an ingress-protected meter that could tolerate washdown and damp conditions without failing.

Engineering Selection

Installation Logic

1. Fit grounding rings at both flanges where the meter joins non-metallic or lined pipe.
2. Keep roughly 5D upstream and 3D downstream straight runs free of valves and bends.
3. Prefer vertical up-flow on the effluent line so solids do not settle on the electrodes.
4. Place the dosing meter downstream of the injection point, but far enough for full mixing.
5. Keep the pipe full bore — never install where air can collect at the highest point.

Why an Electromagnetic Flowmeter

Electromagnetic flowmeters are ideal here because the signal depends on the conductivity of the liquid, not on viscosity or density, so changing dye recipes and fluctuating pH do not disturb the reading. With a full-bore design there is no obstruction to trap lint or fiber, so pressure loss stays minimal and the line keeps flowing freely. Combined with a non-wetting PTFE liner and corrosion-resistant electrodes, the meter remains accurate across the full range of dyeing chemicals and can feed the dosing controller directly through its 4–20 mA and pulse outputs.

Result

The PTFE-lined, Hastelloy-electrode meter delivered stable, repeatable readings despite shifting conductivity and pH. Manual electrode cleaning was reduced, maintenance downtime fell, and chemical dosing tracked production more closely — cutting reagent waste and improving effluent control.

Procurement Decision

For dyeing lines, specify the lining and electrode material against the actual chemical cocktail, not just "water". Confirm grounding practice, choose the IP rating for the pit, and keep a spare liner/electrode kit on site to protect uptime.
