Pressure 2.5MPa Magnetic Flap Level Gauge 300mm-15000mm Range
Product Details
| Product Name: | Magnetic Flap Level Gauge | Output Signal: | 4-20 MA / Reed Switch / Hall Effect Sensor |
|---|---|---|---|
| Accuracy: | ±1 Mm To ±5 Mm | Measure Menttype: | Liquid Level Measurement |
| Installation Type: | Vertical Mounting | Measurement Range: | 0-10 Meters (varies By Model) |
| Operating Pressure: | Up To 10 MPa | Power Supply: | 24 V DC (typical) |
| Protection Rating: | IP65 / IP67 | Operating Temperature: | -40°C To 150°C |
| Highlight |
2.5MPa Magnetic Flap Level Gauge 300mm,2.5MPa Magnetic Flap Level Gauge,Magnetic Flap Level Gauge 15000mm |
||
Product Description

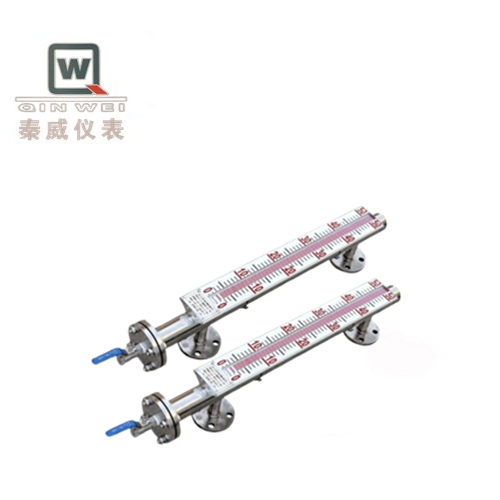

Magnetic Flap Level Gauge 300-15000mm Range 2.5MPa Pressure
Magnetic flap level gauge with remote transmission, magnetic switch float top-mounted magnetic flap water level gauge, magnetic flap switch.
The magnetic flap level gauge operates based on the magnetic coupling principle and is an instrument used to output control liquid level signals. It is installed on the extended pipe outside the tank or trough, and the liquid level inside the tank or trough can be clearly indicated by the flap indicator. A magnetic switch can also be added to the outside of the bypass pipe to serve as an electrical contact signal output, or a liquid level transmitter can be installed for remote liquid level signal transmission and liquid level control.
It is widely applicable to various occasions. It is suitable for medium detection, remote observation and control of all kinds of towers, tanks, troughs, spherical containers and boilers, such as reservoirs, crude oil storage tanks, fuel tanks, juice factories, tomato paste storage tanks, chemical material storage warehouses, etc. It is durable and suitable for high temperature/high pressure/strong corrosion/high viscosity media.
| Product Name | Magnetic Flipping Plate Level Gauge |
| Measurement Range | 300 - 15000mm |
| Accuracy | ±10mm, ±16mm |
| Diameter of Flipping Plates | 10mm, 16mm |
| Working Pressure | ≤2.5MPa (Custom design available for pressures above 2.5MPa); Anti-corrosion type: ≤1.0MPa |
| corrosion type | ≤1.0MPa |
| Medium Density | ≥0.45g/cm³ |
| Density Difference of Medium | ≥0.15g/m³ (For interface measurement) |
| Medium Temperature | -20°C to +250°C |
| Medium Viscosity | ≤0.4Pa.S For media with high viscosity or those prone to crystallization at low temperatures, a heated jacketed type level gauge can be selected based on user requirements. |
| Connection Flange Size | DN20, PN1.0 (Metric) |
Reference Table of Liquid Medium Density and Float Distance (Reference Data)
Due to the different densities of the medium, the lengths of the floats also vary. Please reserve a certain installation space.
| Liquid medium density: (g/cm³) | Submerged cylinder distance (mm) | Typical examples of liquid media |
| 0.45 - 0.6 | 450 - 600 | Liquefied petroleum gas,liquid nitrogen |
| 0.61 - 0.74 | 300 - 500 | Gasoline,butadiene |
| 0.75 - 0.85 | 250 - 300 | Methanol,light oil |
| 0.86 - 0.99 | 220 - 250 | Propanol,beer |
| 1.0 - 1.10 | 200 - 220 | Water,acetic acid |
| 1.11 - 1.25 | 170 - 200 | Hydrochloric acid,tar |
| 1.26 - 1.39 | 160 - 170 | Liquid caustic soda,20% dilute sulfuric acid |
| 1.40 - 1.59 | 150 - 160 | Liquid chlorine,chloroform |
| 1.60 - 2.0 | 120 - 150 | 98% sulfuric acid,fluorine oil |
National standard flange, sturdy and durable: 16mm thick forged flange plate
Seamless steel pipe one-piece molding: effectively eliminates the risk of liquid splashing under high pressure
High-quality magnet, strong magnetic force: longer service life, magnetic flip board internal float ball
Product Highlights
Magnetic Flap Level Gauge operates on the magnetic coupling principle for level indication and control output. Available with 300mm-15000mm range and 2.5MPa rating, it supports remote transmission and magnetic switches. Inquire now for level gauge specifications.
