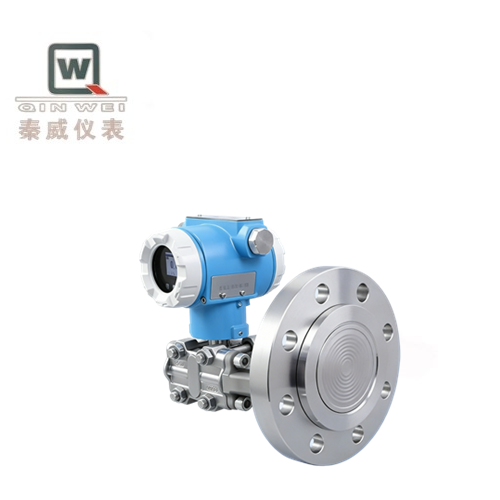

Single Flange Level Transmitter Explosion Proof Diaphragm Intelligent Liquid Level Gauge

Single-flange liquid level gauge

Single-flange liquid level gauge is a contact type liquid level measuring instrument, which calculates the liquid level height by measuring the static pressure of the liquid.

It is widely applied in the flow measurement and control of various industrial processes such as petrochemical, steel and metallurgy, drainage, water conservancy and irrigation, water treatment, environmental protection and sewage monitoring and control, papermaking, pharmaceuticals, food, power generation and energy conservation, as well as agricultural production.

It can measure the liquid level, pressure and density of media with high temperature, high viscosity, easy crystallization, easy sedimentation and strong corrosion, and then convert them into 4~20MA.DC signal output. It supports the Hart protocol and has good universality. When used in combination with orifice plates and vortex flowmeters, it can form an automatic control metering system. It features high precision, good interchangeability and universality of components, and long service life.

Key Features

1. Smart meter head: LCD display, easy to set and operate, few components, stable structure, anti-interference, fast response, wide voltage supply, temperature self-compensation, and automatic temperature drift correction.
2. Protection quality: Reverse connection/overcurrent protection, electrical interface output: 4-20mA, 4-20mA + Hart.
3. Diaphragm flange: Large diaphragm design, test head without pressure tapping hole, will not be blocked, high resolution, high resistance, low power, advanced internal temperature compensation technology.
4. One-piece formed housing: Flange connection, solid components, plug-in electronic circuit board, making the transmitter sturdy, shock-resistant, and pressure-resistant. The standard is 316L diaphragm, and HC/tantalum/PTFE can be selected.
5. Isolated wiring chamber: Effectively isolates external water vapor interference, two-wire system wiring terminal, convenient wiring, and firm installation.
