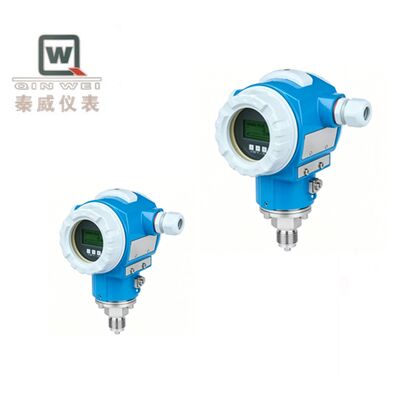

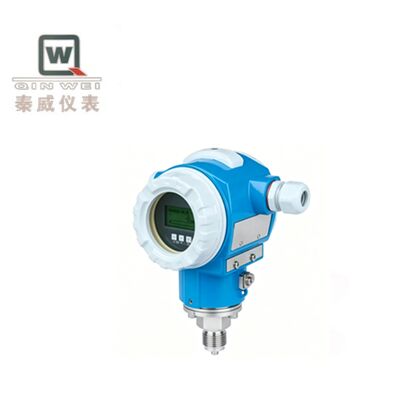

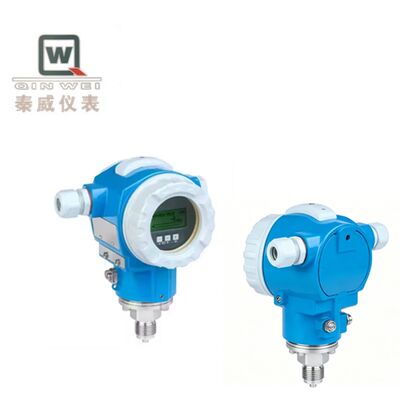

Name: Absolute Pressure And Gauge Pressure Meters, Suitable For Gases And Liquids
Brand: Xi 'an Qinwei Instrument Factory (General Partnership Enterprise)
SKU: QWYB-527
Availability: InStock

Home Products Pressure Transmitter

Absolute Pressure And Gauge Pressure Meters, Suitable For Gases And Liquids

Product Details:

Brand Name:	QINWEIYB
Model Number:	QWYB-527

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Carton or wooden box
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100PCS/Month

Contact Now

Detailed Product Description

Material:	Aluminum, 316SST	Measurement Principle:	Absolute Pressure And Gauge Pressure
Accuracy:	Up To 0.025%	Main Material Contact Components:	Ceraphire Ceramic, Alloy C, 316L, Monel, PVDF
Minimum Calibratable Span:	5 Mbar (0.075 Psi)	Communication:	4...20 MA HART, PROFIBUS PA, FOUNDATION Fieldbus
Pressure Measurement Range:	100 Mbar...40 Bar (1.5 Psi... 600psi)	Process Temperature:	-40°C Propylene... 150°C (-40°F..... Maximum Operating Temperature: 302°F (150°C)
Highlight:	Absolute pressure meters for gases , Gauge pressure meters for liquids , Radar level gauge pressure meters

The true absolute pressure of the medium is measured with the absolute vacuum as the zero point reference, and it is not affected by the changes in local atmospheric pressure.

Applicable scenarios (must use absolute pressure conditions)
Vacuum units, negative pressure pumping, vacuum pump systems
Laboratories, vacuum monitoring of tanks
Meteorology, semiconductor vacuum processes
Low pressure, negative pressure conditions, cannot be replaced by gauge pressure
Precise measurement in high altitudes with large fluctuations in atmospheric pressure
Absolute pressure and gauge pressure gauges, suitable for gases and liquids

Specifications

Material: Aluminum, 316SST

Measurement Principle: Absolute pressure and gauge pressure

Accuracy: Up to 0.025%

Main material contact components: Ceraphire ceramic, Alloy C, 316L, Monel, PVDF

Minimum calibratable span: 5 mbar (0.075 psi)

Communication: 4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus

Pressure measurement range: 100 mbar...40 bar (1.5 psi... 600psi)

Process temperature: -40°C propylene... 150°C (-40°F..... Maximum operating temperature: 302°F (150°C)

Overpressure limit: 60 bar (900 psi)

When measuring vacuum, negative pressure, and avoiding interference from atmospheric pressure, choose an absolute pressure transmitter.
