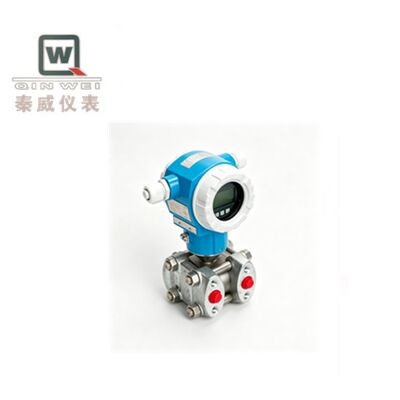

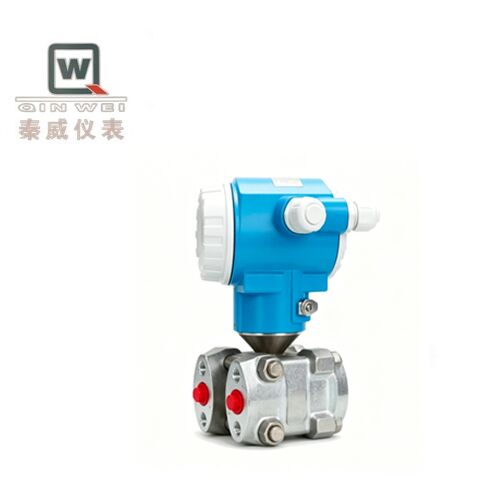

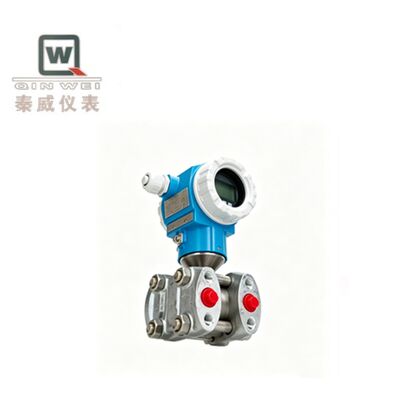

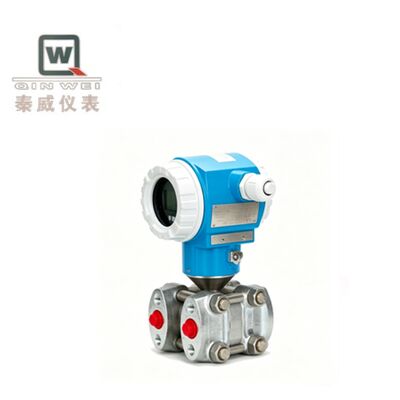

Name: Level Flowmeter, PH Sensor, Endress Hauser Pressure Transmitter
Brand: Xi 'an Qinwei Instrument Factory (General Partnership Enterprise)
SKU: QWYB-531
Availability: InStock

Home Products Pressure Transmitter

Level Flowmeter, PH Sensor, Endress Hauser Pressure Transmitter

Product Details:

Place of Origin:	China
Brand Name:	QINWEIYB
Model Number:	QWYB-531

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Carton or wooden box
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100PCS/Month

Contact Now

Detailed Product Description

Paint:	Pigment, Lubricating Oil, Water, Air, Liquid, Gas	Accuracy:	+/-0.05%
Material:	Stainless Steel	Type:	Composite Instrument, Differential Pressure Flowmeter
Connectivity:	Flange	Measurement Range:	0~2000
Flow Rate:	38	Pressure Range:	0~100KPa~35MPa
Highlight:	Endress Hauser pressure transmitter with warranty , Level flowmeter for industrial use , PH sensor for water monitoring

Pressure transmitters can measure the pressure of gases, liquids and steam, converting the pressure magnitude into standard electrical signals and transmitting them to industrial measuring instruments such as PLCs, meters and control cabinets.

Three common types

Gauge pressure transmitter

Most commonly used, it measures the pressure of pipelines or equipment relative to atmospheric pressure.

Absolute pressure transmitter

It measures pressure relative to a vacuum and is used in negative pressure, vacuum equipment, and precise working conditions.

Differential pressure transmitter

It measures the pressure difference between two points and is used to calculate liquid level, flow rate, and pressure difference.

Key Points for Type Selection

Type	Definition	Typical Applications
Gauge Pressure	Zero reference is atmospheric pressure, can be positive or negative	Water pipe pressure, container pressure (most common)
Absolute Pressure	Zero reference is absolute vacuum, only positive values	Vacuum pumps, atmospheric pressure monitoring
Differential Pressure	Pressure difference between two points	Flow measurement (orifice plate), liquid level measurement

Evaluate the medium and working conditions

Temperature: Ensure that the medium temperature is within the operating temperature range of the transmitter. For high-temperature media (200-400℃), high-temperature types or the installation of condensate tubes is recommended.
Corrosiveness: Select the wetted material based on the medium composition (such as 316L stainless steel, Hastelloy, ceramic diaphragm, etc.).
Cleanliness: For viscous or particulate-containing media, it is recommended to use a flat diaphragm design to prevent clogging.

Product Specifications

Paint: Pigment, lubricating oil, water, air, liquid, gas
Accuracy: +/-0.05%
Material: Stainless steel
Type: Composite instrument, differential pressure flowmeter
Connectivity: Flange
Measurement range: 0~2000
Flow rate: 38
