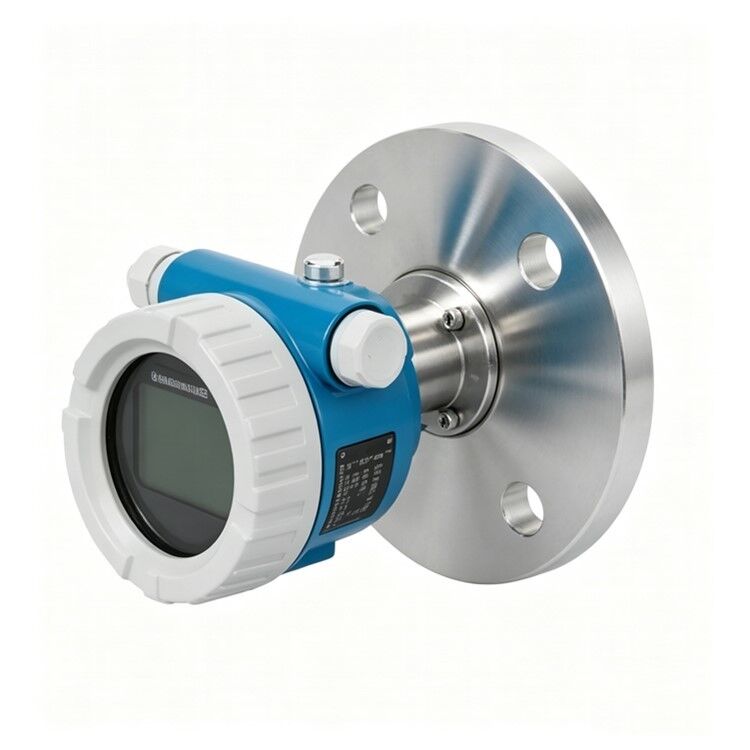

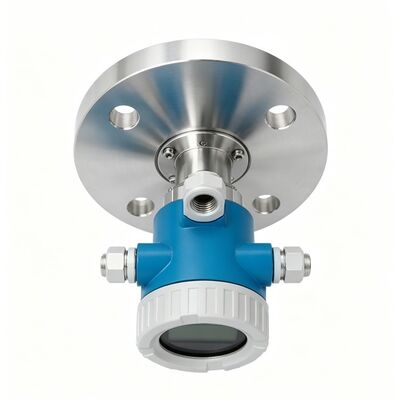

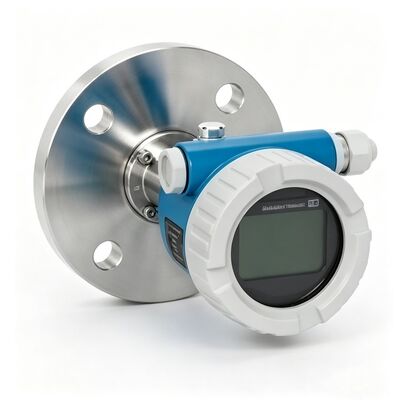

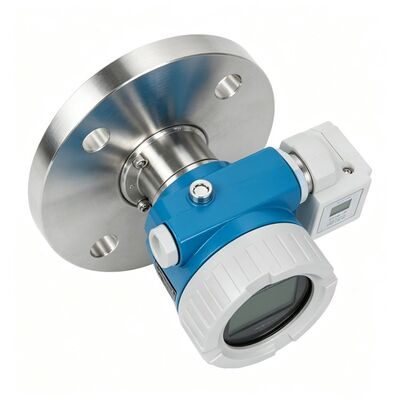

New Original Evans+Hausser PMC51B Smart DP | Metal Diaphragm for High-Requirement and Gas Environments

Product Details:

Brand Name:	Endress+Hauser
Model Number:	PMC51B

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Carton or wooden box
Delivery Time:	5-8 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100PCS/Month

Contact Now

Detailed Product Description

Measuring Range:	100 Mbar... 40 Bar	Reference Measurement Accuracy:	Standard ±0.075%, Platinum ±0.055%
OPL Overpressure Limit:	60 Bar	Process Temperature:	-40... 100°C
Upply Voltage:	10.5...35 VDC, Intrinsically Safe: 10.5... 30 VDC	Output:	4... 20 MA 4... 20 MA HART PROFINET With Ethernet-APLPROFIBUS PA
Process Connection:	Threaded, Flanged	Calibration:	5-point/10-point
Housing:	Optional Split Housing	Bluetooth Operation:	Bluetooth Operation Available
Highlight:	Evans Hausser PMC51B pressure transmitter , metal diaphragm pressure transmitter , gas environment pressure sensor

The structural principle combining capacitive measurement with ceramic diaphragm is highly suitable for applications involving corrosive liquids and gases, as well as those requiring high precision, while also enabling measurements across both small ranges (low pressure) and large ranges (high pressure).

Specifications

Measurement Principle: Capacitive measurement principle with ceramic sensing diaphragm

Application: Gauge pressure, absolute pressure, liquid level

Measuring Range: 100 mbar... 40 bar

Reference measurement accuracy: Standard ±0.075%, Platinum ±0.055%

Explosion protection certification: Non-explosion-proof, intrinsically safe, explosion-proof

OPL overpressure limit: 60 bar

Process temperature: -40... 100°C

Ambient temperature: Integrated unit: -40 to +85°C · Separated housing: -20 to +60°C

Supply voltage: 10.5...35 VDC, intrinsically safe: 10.5... 30 VDC

Output: 4... 20 mA 4... 20 mA HART PROFINET with Ethernet-APLPROFIBUS PA

Process Connection: Threaded, Flanged

Calibration: 5-point/10-point

Other Certifications: 3.1/NACE Material Certificate SIL; Drinking water certified; Classification certification

Housing: Optional split housing

Bluetooth operation: Bluetooth operation available

Key Advantages

Corrosion Resistance: Ceramics resist strong acids, strong alkalis, and solvents, making them suitable for chemical industries.
High Stability: Ceramic materials are virtually unaffected by temperature fluctuations, ensuring excellent long-term stability.
Elasticity and Hardness: Although ceramics are hard, their thickness and structural design allow for slight elastic deformation, enabling high-precision measurements.
Excellent Overpressure Resistance: Ceramic diaphragms can withstand significant pressure shocks without deformation or damage.

Application Scenarios

Chemical, petrochemical, and pharmaceutical industries: Pressure measurement of acidic and alkaline solutions
Food and beverage industry: Sanitary pressure measurement
Energy industry: Pressure monitoring of steam and gas pipelines
