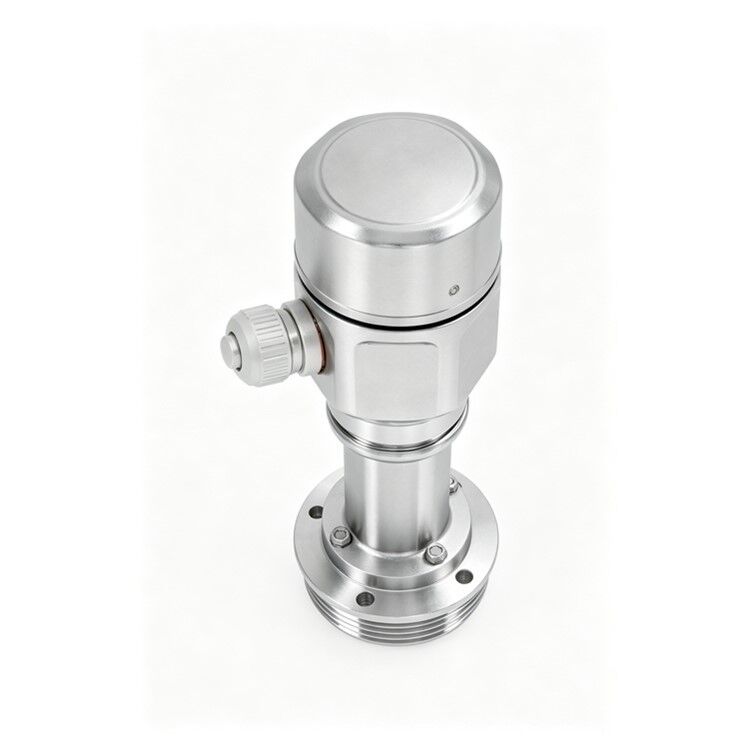

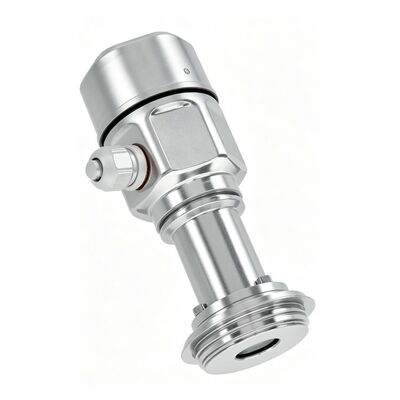

Name: Evans-Hauser PMC51-AA21A1MGJRKJA+Z1 99.9% Aluminum Oxide Ceramic Digital Pressure Sensor Vacuum Ceramic Sensing Diaphragm
Brand: Xi 'an Qinwei Instrument Factory (General Partnership Enterprise)
SKU: PMC51
Availability: InStock

Home Products Pressure Transmitter

Evans-Hauser PMC51-AA21A1MGJRKJA+Z1 99.9% Aluminum Oxide Ceramic Digital Pressure Sensor Vacuum Ceramic Sensing Diaphragm

Product Details:

Brand Name:	Endress+Hauser
Model Number:	PMC51

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Carton or wooden box
Delivery Time:	5-8 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100PCS/Month

Contact Now

Detailed Product Description

Measurement Principle:	Capacitive Measurement Principle With Ceramic Sensing Diaphragm	Application:	Gauge Pressure, Absolute Pressure, Liquid Level
Measuring Range:	100 Mbar... 40 Bar	Reference Measurement Accuracy:	Standard: +0.10%; Platinum Grade: ±0.075%
Explosion Protection Certification:	Non-explosion-proof, Intrinsically Safe, Explosion-proof	Output:	60 Bar
Process Temperature:	-40...130°C; Not Exceeding +150°C Within 1 Hour	Ambient Temperature:	-40... +85°C
Non-explosion-proof:	11.5... 45 VDC	Process Connection:	Threaded, Flanged, Sanitary
Highlight:	aluminum oxide ceramic pressure sensor , digital vacuum pressure diaphragm , ceramic sensing diaphragm transmitter

Key Features

High precision: 99.9% alumina ceramic ensures exceptional accuracy and durability.
Made in Germany: Endress+Hauser guarantees superior craftsmanship and reliability.
Long-lasting performance: 1-year warranty for peace of mind with extended use.
Versatile applications: Ideal for automation and industrial equipment requirements.
Fast delivery: Shipped within 3–5 days via DHL, FedEx, UPS, or EMS.

Technical Specifications

Parameter	Value
Measurement Principle	Capacitive measurement principle with ceramic sensing diaphragm
Application	Gauge pressure, absolute pressure, liquid level
Measuring Range	100 mbar... 40 bar
Reference measurement accuracy	Standard: +0.10%; Platinum grade: ±0.075%
Explosion protection certification	Non-explosion-proof, intrinsically safe, explosion-proof
OPL overpressure limit	60 bar
Process temperature	-40...130°C; not exceeding +150°C within 1 hour
Ambient temperature	-40... +85°C
Supply voltage 4... 20 mAHART	Non-explosion-proof: 11.5... 45 VDC Ben An: 11.5... 30VDC
PROFIBUS PA (Supply Voltage)	9...32 VDC (non-explosion-proof)
FOUNDATION Fieldbus (Supply Voltage)	9...32 VDC (non-explosion-proof)
Output	4... 20 mA 4... 20 mA HART PROFIBUS PA FOUNDATION Fieldbus 4... 20 mA 10-Link
Process Connection	Threaded, Flanged, Sanitary
Calibration	5-point / 10-point
Other Certifications	3.1/NACE Material Certificate SIL; Hull certification; Drinking water certification; Sanitary certification
Housing	Optional split housing
