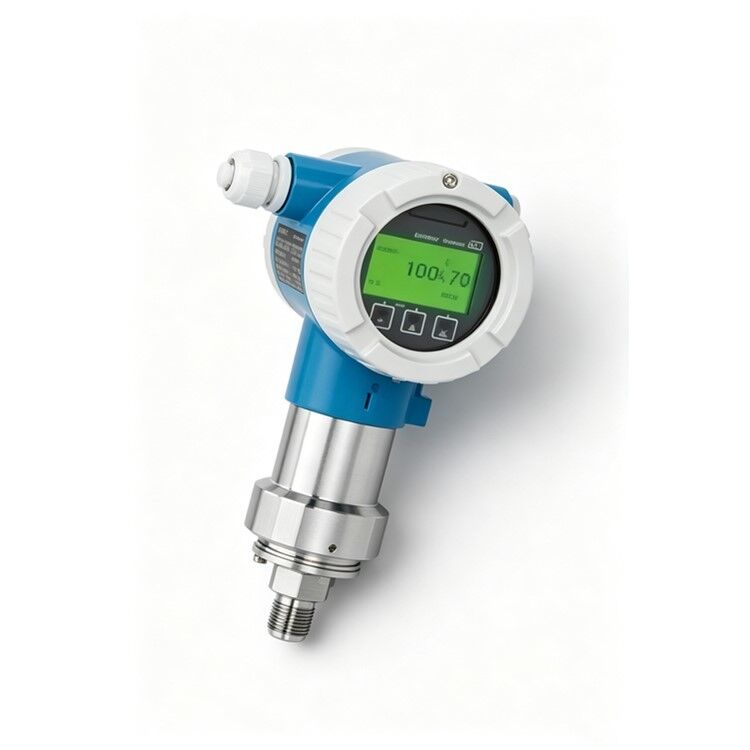

E+H PMC71B High-Precision Industrial Pressure Transmitter For Oil And Gas Applications, 4-20mA Pressure Transmitter

E+H PMC71B High-Precision Industrial Pressure Transmitter For Oil And Gas Applications, 4-20mA Pressure Transmitter

  • E+H PMC71B High-Precision Industrial Pressure Transmitter For Oil And Gas Applications, 4-20mA Pressure Transmitter
  • E+H PMC71B High-Precision Industrial Pressure Transmitter For Oil And Gas Applications, 4-20mA Pressure Transmitter
  • E+H PMC71B High-Precision Industrial Pressure Transmitter For Oil And Gas Applications, 4-20mA Pressure Transmitter
  • E+H PMC71B High-Precision Industrial Pressure Transmitter For Oil And Gas Applications, 4-20mA Pressure Transmitter
E+H PMC71B High-Precision Industrial Pressure Transmitter For Oil And Gas Applications, 4-20mA Pressure Transmitter
Product Details:
Brand Name: Endress+Hauser
Model Number: PMC71B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Carton or wooden box
Delivery Time: 5-8 work days
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100PCS/Month
Contact Now
Detailed Product Description
Ingress Protection: IP65 Customization Services: OBM, ODM, OEM
Brand Name: Endress+Hauser Maximum Range: ≤40 MPa
Process Temperature: -40 To 125°C Warranty: 1 Year
Material: 316L Communication Method: 4-20mA HART
SIL Certification: SIL 2 / SIL 3 Process Temperature: -40... +150°C
Highlight:

E+H PMC71B pressure transmitter

,

4-20mA industrial pressure transmitter

,

oil and gas pressure sensor

Product Specifications
Ingress ProtectionIP65
Customization ServicesOBM, ODM, OEM
Brand NameEndress+Hauser
Maximum Range≤40 MPa
Process Temperature-40 to 125°C
Warranty1 year
TypePressure Transmitter
ModelPMP50
Material316L
Communication Method4-20mA HART
SIL CertificationSIL 2 / SIL 3
Measurement PrincipleCapacitive measurement principle with ceramic sensing diaphragm
ApplicationGauge pressure, absolute pressure, liquid level
Measuring Range100 mbar.... 40 bar
Reference measurement accuracyStandard +0.05%, Platinum grade +0.025%
Explosion protection certificationNon-explosion-proof, intrinsically safe, explosion-proof
OPL overpressure limit60 bar
Process temperature-40... +150°C
Ambient temperatureIntegrated unit: -40...+85°C, Separated housing: -20... +60°C
Supply voltage10.5...35 VDC, intrinsically safe: 10.5... 30VDC
Output4... 20 mA HART
PROFINET with
Ethernet-APL
PROFIBUS PA
Process ConnectionThreaded, Flanged
Calibration5-point / 10-point
Additional Certifications3.1/NACE Material Certificate; SIL: Drinking Water Certification; Marine Classification Certification
HousingOptional Split Housing
Bluetooth OperationYes
Features
  • Easy debugging guidance through a proven intuitive user interface
  • Use of proven software and battery measurement components
  • Flexible write protection via hardware and/or software wizards
  • Pre-assembled valve cores (pressure and leakage tested) for faster installation
Advantages
  • Pressure measurement range: up to 400 bar (6,000 psi)
  • Process temperature: up to 400°C (752°F) with diaphragm seal
  • Accuracy: up to ±0.055%

Tag:

DP Transmitter,

Pressure Sensor,

Pressure Transducer
