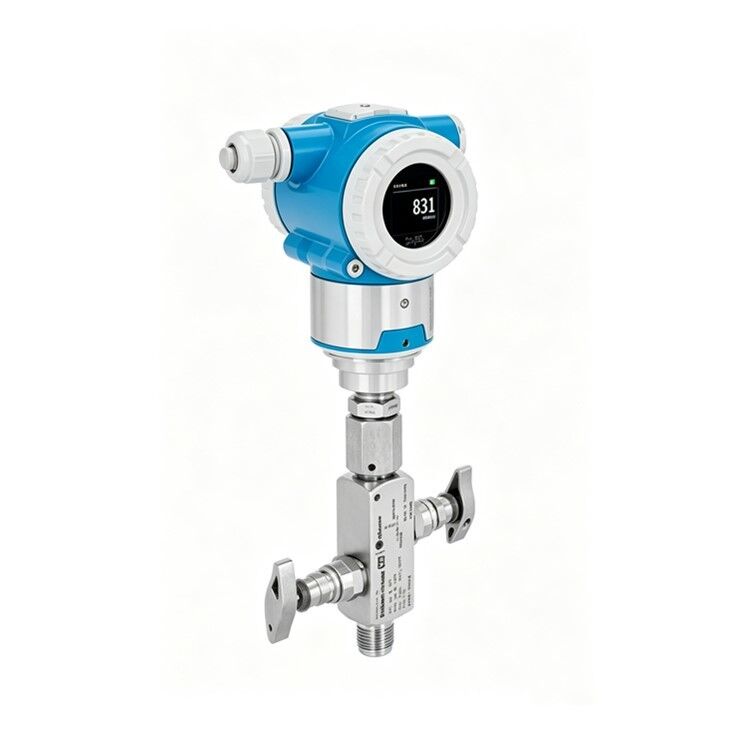

Endress+Hauser High-quality PMP50 Pressure Transmitter, 4–20 MA + HART, Suitable For Water, Chemicals, Oil And Gas

The Cerabar PMP50 is E+H's new generation standard high-precision metal diaphragm pressure transmitter, designed for excellent cost-performance ratio, high accuracy, and easy commissioning. It is suitable for measuring gauge and absolute pressure in gases and liquids, covering applications from conventional to medium-high pressure conditions. Compatible with diaphragm seals, it supports high-temperature environments, making it the go-to model for general-purpose pressure measurement in process industries.

• Outperforms competitors: Standard model 0.065%, Platinum version 0.055%, surpassing PMP51 (0.1%) and approaching the performance level of high-end models from Endress+Hauser.
• Strong temperature adaptability: Standard up to 125°C, optional diaphragm seal up to 400°C, covering part of the temperature range of PMP51 and PMP55 from Endress+Hauser.
• Fast commissioning: Built-in software wizard and hardware write protection enable plug-and-play operation, reducing setup time by over 50%.
• High stability and safety: SIL2 certified with dual sealing design, ensuring long-term reliability and reduced leakage risk.
• Best value for money: Accuracy comparable to premium models at a price lower than PMP51/PMP55—ideal choice for standard applications from Endress+Hauser.

• Equipped with a metal diaphragm sensor, suitable for measuring liquids and gases. Optimized for standard applications, offering intuitive and safe operation.
• Maximum pressure resistance up to 400 bar (6000 psi).
• Diaphragm-sealed instruments withstand temperatures up to 400°C (752°F).
• Maximum measurement accuracy of ±0.055%.

• Built-in instrument operation wizard enables quick and easy commissioning.
• Instrument developed in compliance with IEC 61508 standards.
• Flexible configuration of write protection via hardware and software wizards.
• Pre-installed valve assembly (pressure and leak tested) allows faster installation.

The PMP50 is E+H's benchmark product for balance accuracy, temperature adaptability, and cost: it offers higher precision than the PMP51 at a more competitive price, with an optional sealed version, the PMP55, suitable for high-temperature applications. Ideal for most standard to medium-high pressure and medium-to-high temperature conditions, it is the preferred universal model for pressure measurement in process industries.
