Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor

Product Details:

Brand Name:	QINWEIYB
Model Number:	WKCH1503-B62

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Carton or wooden box
Delivery Time:	5-8 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100PCS/Month

Contact Now

Detailed Product Description

Medium:	High Viscosity Medium Such As Glue	Probe Material:	Teflon
Response Time:	<1 Second	Robe Length:	43mm
Control Box Materlal:	Aluminum Alloy	Overload Protection:	Yes
Working Voltage:	Dc24v	Current Consumption:	<50mA
Protection Class Of The Shell:	IP65	Output Function:	Normally Open/normally Closed
Highlight:	Martini adhesive high-temperature resistant sensor , Longjiao pot level detection probe , Metal glue position sensor with warranty

Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor

Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor 0

Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor 1

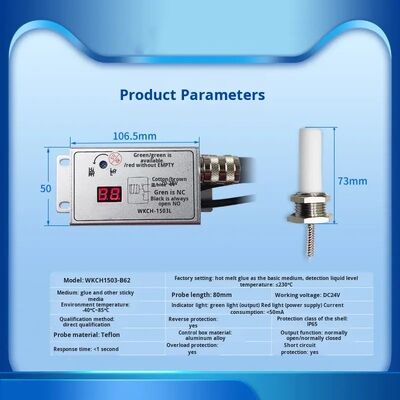

Model	WKCH1503-B62
Medium	high viscosity medium such as glue
Environment temperature	-40-85°c
Qualification method	direct qualification
Probe material	Teflon
Response time	<1 second
Factory setting	hot melt glue as the basic medium
robe length	43mm
Indicator light	green light (output), red light (power supply) Reverse protection: yes
Control box materlal	aluminum alloy
Overload protection	yes
Detection liquid level temperature	s230
Working voltage	Dc24v
Current consumption	<50mA
Protection class of the shell	IP65
Output function	normally open/normally closed
Short circuit protection	yes

Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor 2

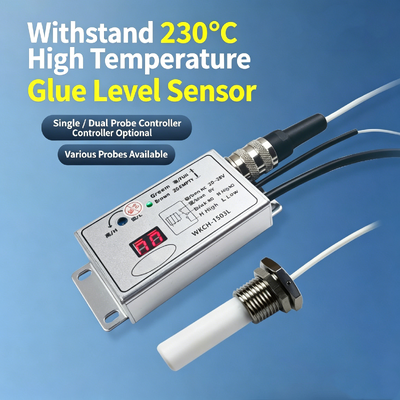

Core Design Advantages (Split-Core Highlights)

1. Heat and Cold Separation for Extended Lifespan
The probe extends directly into the 230°C hot glue pot, while the electronic control box remains externally mounted away from high-temperature sources. This design prevents circuit board aging, drift, or burnout caused by heat, making it ideal for continuous high-temperature operations in woodworking edge banding machines and bookbinding gluing machines.
2. Digital Precision Sensitivity Adjustment with Anti-Glue Interference
Featuring clear digital readouts, the sensor allows fine-tuning of threshold settings to distinguish between pure glue, surface foam, and minor probe residue. This avoids false alarms caused by solidified or clumped hot melt adhesive, and is compatible with both thin hot melt adhesives and high-viscosity PUR polyurethane glues.
3. No Mechanical Moving Parts—Eliminates Jamming
Unlike float-type glue level switches, this sensor has no floating elements or springs. Even when high-temperature glue cools and solidifies, the device won't jam or fail, eliminating the need for frequent cleaning and maintenance.
4. Standard Industrial Switch Output
Supports wide DC voltage input (10–30V) and provides dual NPN/PNP transistor outputs. It can be directly connected to PLCs, audible/visual alarms, or automatic glue refill pumps, enabling real-time glue shortage alerts and automated feeding control.
5. Stable Performance Against Oil, Grease, and Dust
The controller features a metal-sealed housing, and the probe offers IP65 protection, ensuring reliable operation in workshop environments filled with glue fumes, wood chips, and dust.

Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor 3

Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor 4

Mainstream Application Equipment Scenarios

1. Woodworking Machinery: Level detection of PUR adhesive in automatic edge banding machines, with alarm for adhesive shortage
2. Printing and Binding: Material level monitoring in glue tanks of Martini perfect binders and bookbinding machines
3. Hot Melt Adhesive Coating Equipment: High and low adhesive level limit control for adhesive storage tanks in melters and dispensers
4. Packaging Industry: Material shortage protection in hot melt adhesive laminators to prevent dry-burning of adhesive tanks

Martini Adhesive Longjiao Pot Level Detection High-Temperature Resistant 250 Metal Glue Probe Position Sensor 5
