Transparent Automotive And Architectural Glass Mechanical Cutting Machine, Edge Polishing Machine, Digital Ultrasonic Distance Sensor

Transparent Automotive and Architectural Glass Mechanical Cutting Machine, Edge Polishing Machine, Digital Ultrasonic Distance Sensor

Model

WUB-L-1000

Connection method

4-core aviationplug

Operating power

<0.5W

Detection distance

50-1000mm

Power supplyvoltage

DC10-30V

Protection class

IP65

Appearance material

Brass nickel-plated

Overvoltage protection

<35V

Temperature

-25°C~70°C

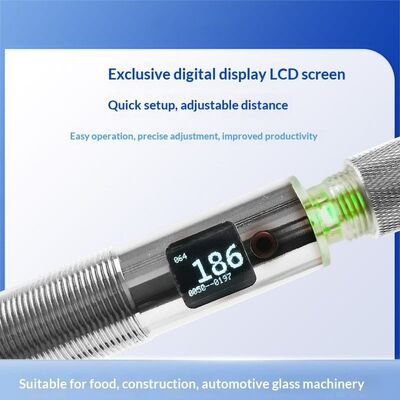

• Built-in LCD digital display: Real-time millimeter-level measurement of current distance, enabling direct reading without external instruments

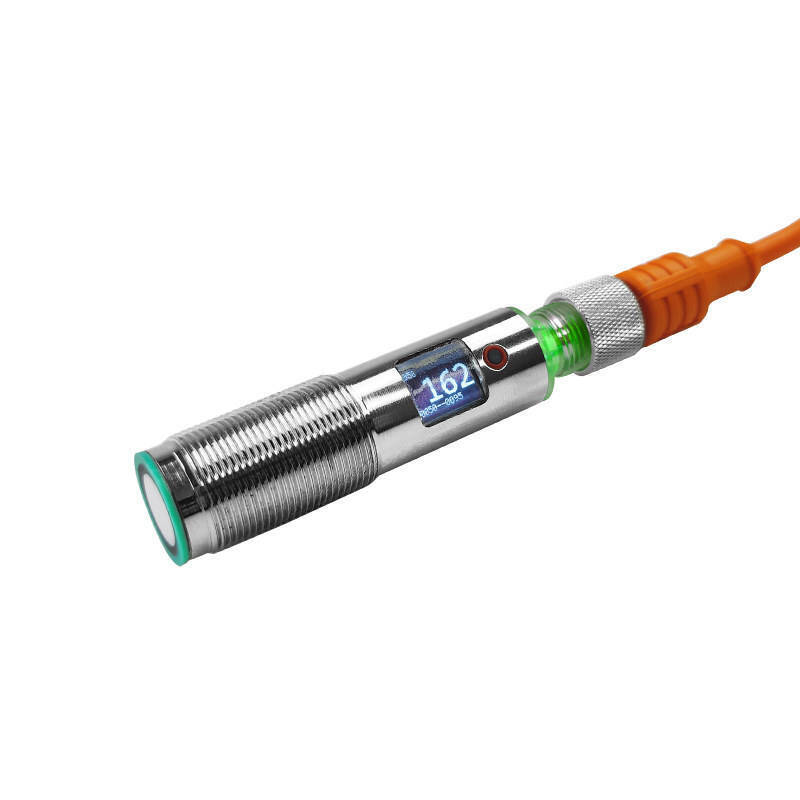

• M18 metal threaded cylindrical body with stainless steel housing for waterproof and dustproof protection, featuring an orange bend-resistant cable exit

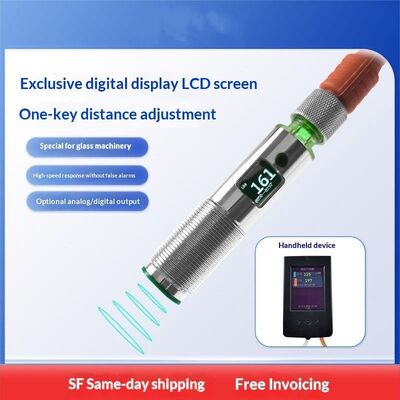

• Green status indicator light + one-button learning key for quick calibration of detection distance—no need for knobs or screwdrivers during adjustment
• High-frequency 112kHz narrow-angle ultrasonic wave with strong anti-interference capability, suitable for detecting transparent glass, water, powders, and granular materials

• Glass processing equipment: Position detection of glass on cutting and edge-grinding machines (specialized for transparent objects)
• Industrial silos: Level detection of plastic pellets and powders
• Water tanks / storage tanks: Non-contact monitoring of water and oil levels
• Production lines: Object distance measurement, height detection, anti-collision counting
