HVAC Temperature Transmitter for Building Management Systems
Heating, ventilation and air-conditioning systems live on temperature data. This case covers the measurement points that drive energy efficiency and tenant comfort in a commercial building: chilled-water supply and return, hot-water heating loops, heat exchangers and the boiler plant room, all reporting into a building management system (BMS).
Real Working Condition
- Chilled water: supply 5–7 °C, return up to 12 °C.
- Hot water / district heating: 60–80 °C distribution.
- Heat exchangers: primary/secondary temperature differential used for efficiency calculations.
- Plant rooms: condensing surfaces on cold pipework and a panel full of VFD-driven pumps.
Customer Pain Points
- Commissioning friction: technicians could not verify a reading against the BMS without a separate local indicator.
- Signal loss: millivolt sensor signals picked up noise on the long journey to the controller over a shared building network.
- Condensation: moisture formed on chilled-water assemblies and threatened the electronics.
- Retrofit constraints: existing panels had only a standard 35 mm DIN rail available.
Engineering Selection

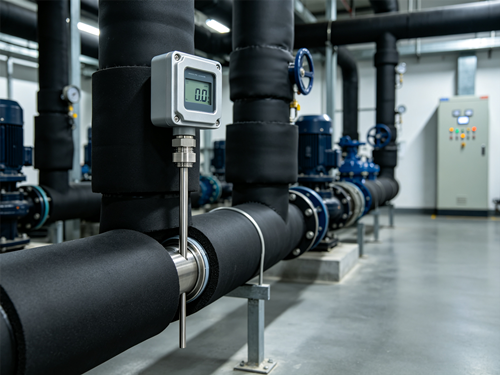

Two models covered the site. The QW-SLS74 on-site display temperature transmitter was fitted where inspection staff needed an immediate local reading on supply and return pipes and heat exchangers. Inside the BMS panel, the QW-SLS76 guide-rail (DIN-rail) temperature transmitter converted each Pt100 input into a clean 4–20 mA loop next to the controller.
| Parameter | Specification |
|---|---|
| Sensor element | Pt100 (RTD) |
| Output signal | 4–20 mA (2-wire) |
| Mounting | 35 mm DIN rail or on-site display head |
| Local indication | Configurable °C / °F, output % |
| Applications | Supply/return water, heat exchangers, boiler plant |
Installation Logic
- Well immersion set so the tip sits in the pipe centre line for a true bulk-fluid reading.
- Separate measurement points on supply and return, so the system can compute the ΔT that reflects real energy transfer.
- DIN-rail transmitters mounted in the BMS panel close to the controller, keeping the analogue loop short.
- Signal cables routed away from VFD power wiring and shielded to hold accuracy.
Results
The dual approach gives both local and remote visibility: field staff commission and troubleshoot from the display, while the controller receives a strong, standardised 4–20 mA signal. Accurate supply/return ΔT data supports heat-exchanger efficiency monitoring and avoids over-pumping, which is where HVAC energy savings are realised.
Procurement Decision
Decide between DIN-rail, head-mount and on-site display formats based on panel space and whether a local reading is required. Confirm the temperature range covers both chilled and hot water duties, verify BMS input compatibility (4–20 mA loop power), and check the immersion length matches the pipe diameter available on site.
