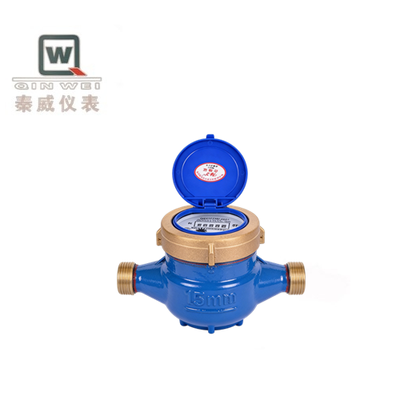

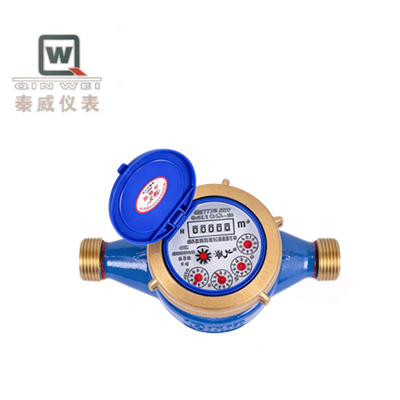

ABS Plastic Waterproof Water Meter Highly Sensitive Rotor Water Meter IP68

A rotor water meter is a type of velocity water meter. Its working principle is that the water flow drives the rotor (rotor blade) inside the meter case to rotate. The rotational speed is directly proportional to the water flow speed. The number of rotations is accumulated through a gear transmission mechanism and converted into water consumption, which is displayed on the counter.

In simple terms: The faster the water flow, the faster the rotor rotates; the more rotations, the greater the accumulated water consumption.

• Simple structure and low cost: The production process is mature and the price is affordable.
• High sensitivity: It responds well to small flow rates of water and is suitable for intermittent water use in households.
• Small size and light weight: Easy to install.
• Relatively wide range ratio: The range ratio (Q3/Q1) of modern multi-stream vane water meters can reach R80 or higher, which can adapt to a wide range of flow rate changes.

• Household water meters: DN15 (15mm diameter), DN20, and DN25 are the most common household specifications.
• Independent metering for apartments, shops, and small businesses.

When comparing the rotary water meter with the "one-meter-multiple-card water control machine" used in campus bathrooms, the clear differences in their positioning can be seen:

Rotary water meters are the fundamental components for water resource measurement and the "workhorses" that ensure reliable and economical water usage metering for thousands of households. However, in specific scenarios where precise control, resource conservation, and fee management are required (such as campus bathrooms), they evolve into a part of more sophisticated intelligent water control systems, exerting greater management efficiency. Although they share the same technical principle (both may use rotary metering units), they are completely different in terms of functionality and system hierarchy.
