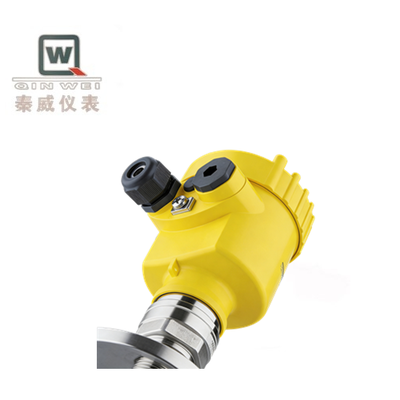

Continuous Wave Radar Level Sensor 80Hz Explosion Proof Radar Level Transmitter

Continuous Wave Radar Level Sensor 80Hz Explosion Proof Radar Level Transmitter

  • Continuous Wave Radar Level Sensor 80Hz Explosion Proof Radar Level Transmitter
  • Continuous Wave Radar Level Sensor 80Hz Explosion Proof Radar Level Transmitter
  • Continuous Wave Radar Level Sensor 80Hz Explosion Proof Radar Level Transmitter
  • Continuous Wave Radar Level Sensor 80Hz Explosion Proof Radar Level Transmitter
Continuous Wave Radar Level Sensor 80Hz Explosion Proof Radar Level Transmitter
Product Details:
Place of Origin: China
Brand Name: QINWEIYB
Certification: Explosion-proof certificate ,Safety certificate
Model Number: QWRD80G609
Document: Image_20241209_0001.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100PCS/Month
Contact Now
Detailed Product Description
Application: Powder,corrosive Liquid,strong Dust Etc,Solid Particles,heavy Steam Conditions Measurement Principle: Microwave Radar
Medium Temperature: -40~250℃,-40 C~150 C,-40 ℃ ~ 250℃ Material: Stainless Steel Housing
Precision: <0.1% Process Connection: Flange From DN80
Power Supply: Two Wires DC24±6V; Four Wires AC220V Measuring Frequency: 80Hz
Highlight:

Continuous Wave Radar Level Sensor

,

Radar Level Sensor 80Hz

,

Explosion Proof Radar Level Transmitter

Continuous Wave Radar Level Gauge Without Direct Contact With The Medium

Continuous wave radar level gauge is a common liquid level measurement instrument. It uses radar technology to emit continuous microwave signals and calculates the liquid level by measuring the intensity of the signal's echo.

Product Advantages
  • Non-contact Measurement: The antenna does not come into contact with the medium, making it suitable for corrosive, high-temperature, high-pressure, viscous, and easily crystallizing complex media.
  • High Precision: The measurement accuracy is usually within ±1 to 3mm, far exceeding non-contact methods such as ultrasonic.
  • Almost Unaffected by Working Conditions:
    • Unaffected by Pressure and Temperature Changes: The speed of electromagnetic wave propagation is hardly disturbed by these factors.
    • Unaffected by Changes in Gas Phase Medium Composition and Density: A significant advantage over ultrasonic.
    • Strong Resistance to Steam, Dust, and Foam: Especially high-frequency (such as 26GHz, 80GHz) radars, with small beam angles, concentrated energy, and stronger penetration.
  • No Moving Parts, High Reliability, and Low Maintenance.
Comparison with Pulse Radar Level Gauges
Characteristics Continuous Wave Radar Pulse Radar
Working Principle Transmits waves with continuously varying frequencies and measures the frequency difference between the transmitted and received waves. Transmits short pulses and measures the time difference between the transmitted and received waves.
Signal Processing Processed in the frequency domain, requiring high signal quality and relatively complex circuits. Processed in the time domain, with an intuitive principle and relatively simple circuits.
Accuracy Extremely high. The accuracy of measuring the frequency difference can be very high, so it is usually more accurate than pulse radar. High, but may be slightly inferior to FMCW in measuring extremely short distances or requiring extremely high accuracy.
Dead Zone Minimal or almost non-existent. As it is a continuous wave, it can measure very short distances. Has a certain dead zone (cannot measure near the antenna), as the receiver needs to be turned off during pulse transmission.
Cost Usually higher (especially in high-frequency bands). Usually lower, with good cost performance.
Application Focus Applications with extremely high requirements for accuracy and reliability, such as trade settlement, fine chemicals, and small container measurements. Strong versatility, suitable for most industrial liquid and material level measurements, and is one of the market mainstreams.

Continuous wave radar level gauges, with their blind spot-free feature, ultra-high precision and outstanding reliability, are the "high-end" solution in industrial liquid level measurement. Although their cost is usually higher than that of pulse radar, they are the irreplaceable choice in demanding measurement points, small containers or situations requiring extremely high measurement stability, such as safety interlocks and trade handovers.
