Cable-type Guided Wave Radar Liquid Level Measurement Has A Wide Measurement Range And Strong Anti-interference Capability

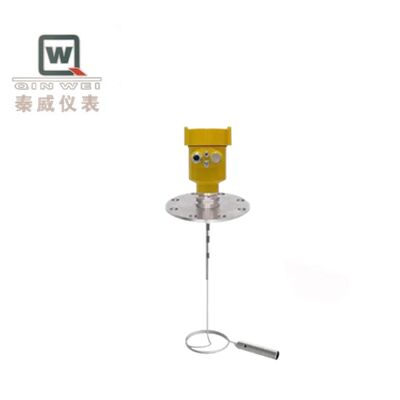

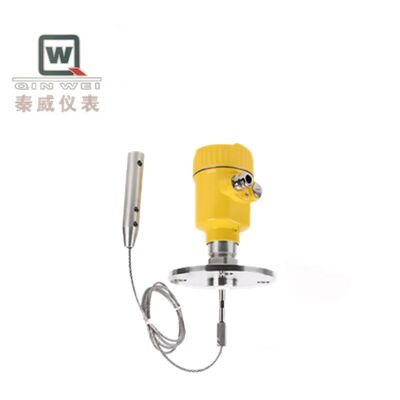

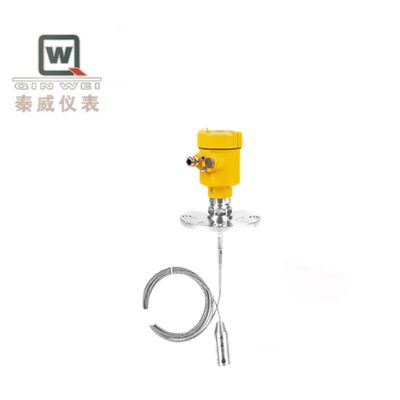

Cable-based guided wave radar level gauge is a contact type liquid level measuring instrument based on the time domain reflectometry (TDR) principle. It measures the liquid level by high-frequency microwave pulses propagating along the cable, and is particularly suitable for liquid and material level measurement in large range and complex working conditions.

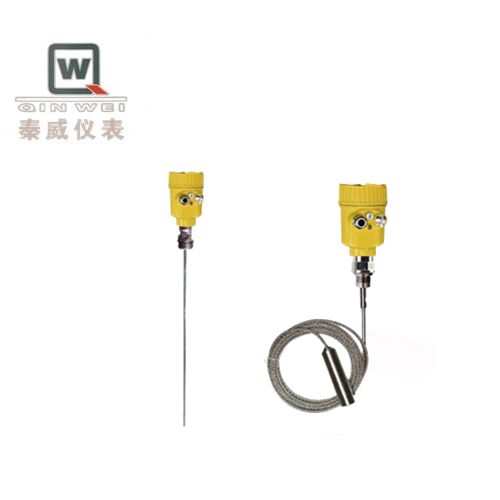

• Wide measurement range: The measurement range is typically up to 20 meters, and some models can be extended to 30 meters or even 35 meters, far exceeding that of the rod type (generally ≤ 6 meters).
• Adaptability to complex media: It is suitable for measuring liquids, slurries, solid particles and powders with a dielectric constant of ≥ 1.4. For viscous liquids or solid powders, the effect is better than that of the rod type.
• Strong anti-interference ability: The guided wave signal energy is concentrated and is not significantly affected by factors such as steam, dust, foam, and liquid surface fluctuations. . The measurement is not affected by changes in medium density or temperature.
• Flexible installation: The flexible cable is convenient for transportation and installation, especially suitable for situations where the top installation space is limited or it is necessary to extend from the top of the tank to the bottom.
• Accuracy and reliability: The measurement accuracy is usually less than 0.1%, with a resolution of 1mm, repeatability of ±3mm, and high long-term stability.

• Petrochemical industry: Level measurement of large oil storage tanks, raw material tanks, and reaction vessels, suitable for corrosive, high-temperature, and high-pressure environments.
• Power and energy: Level monitoring of coal powder silos, ash silos, and transformer oil tanks.
• Food and pharmaceuticals: Measurement of slurries and granular materials, with its non-polluting and easy-to-clean features meeting hygiene requirements.
• Water treatment and environmental protection: Level measurement of sewage tanks, sludge tanks, and large water tanks.
• Building materials and metallurgy: Solid level measurement of cement silos, mineral powder silos, etc.

Cable guided wave radar level gauges, with their core advantages of large measurement range, wide adaptability to media, strong anti-interference ability and flexible installation, have become the ideal choice for liquid level measurement in large storage tanks, silos and complex working conditions.
