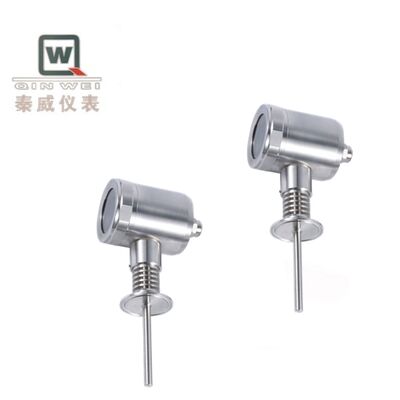

Sanitary Temperature Transmitter, An Expert "born For Cleanliness"

Product Details:

Place of Origin:	China
Brand Name:	QINWEIYB
Model Number:	QW-SLS78

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Carton or wooden box
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,T/T,D/P,Western Union
Supply Ability:	100PCS/Month

Contact Now

Detailed Product Description

Features:	Integrated Temperature Transmitter	Outputsignal:	4-20mA
Connector:	Thread	Sensor Length:	500mm(19.68in)
Display:	Optional LCD Display	Power Supply:	24 V DC
Measure Range:	0-100mpa	Environmental Temperature:	0~50℃
Output:	4...20 MA	Repeatability:	10-95%
Highlight:	sanitary temperature transmitter for cleanliness , hygienic temperature transmitter with warranty , cleanroom temperature transmitter expert design

The hygienic temperature transmitter is a temperature measurement instrument specially designed for industries with extremely high hygiene requirements such as food, pharmaceuticals, and bioengineering.

Core advantages:

Complies with hygiene and safety standards, with no risk of medium contamination.
Supports online cleaning and sterilization, making maintenance convenient.
Features a quick-install structure for efficient installation and disassembly.
High precision and good stability.

The core differences between it and general-purpose temperature transmitters

Comparison dimension	Sanitary temperature transmitter	General industrial temperature transmitter
International certification	Must pass 3-A, EHEDG, FDA and other sanitary certifications	Usually only requires explosion-proof, CE and other general certifications
Surface roughness	Ra ≤ 0.4μm, mirror-polished	Ra around 1.6μm, industrial-level polishing is sufficient
Process connection	Clamp, Varivent, DIN 11851 and other sanitary interfaces	Threading, flange and other general interfaces
Disassembly and cleaning	Supports quick disassembly, supports CIP (cleaning in place)/SIP (sterilization in place)	Usually requires shutdown for disassembly
Structural design	No dead corners, easy to drain	May have dead corners and liquid accumulation risks
Material requirements	Contact parts are 316L stainless steel, with material certificates	304 and 316L are both acceptable

Application scenarios

Food and Beverage: Pasteurization of milk, fermentation of beer, sterilization of fruit juice, CIP cleaning temperature monitoring.
Pharmaceutical Industry: Injection water system, purified water pipeline, fermentation tank, sterilization cabinet.
Biotechnology: Cell culture, bioreactor.
Fine Chemicals: Production of chemical products with cleanliness requirements.

The hygienic temperature transmitter is an expert "born for cleanliness". Its selection logic is very clear: when your application belongs to industries such as food, beverage, pharmaceuticals, and bioengineering that have strict hygiene regulations, it is the only choice.
