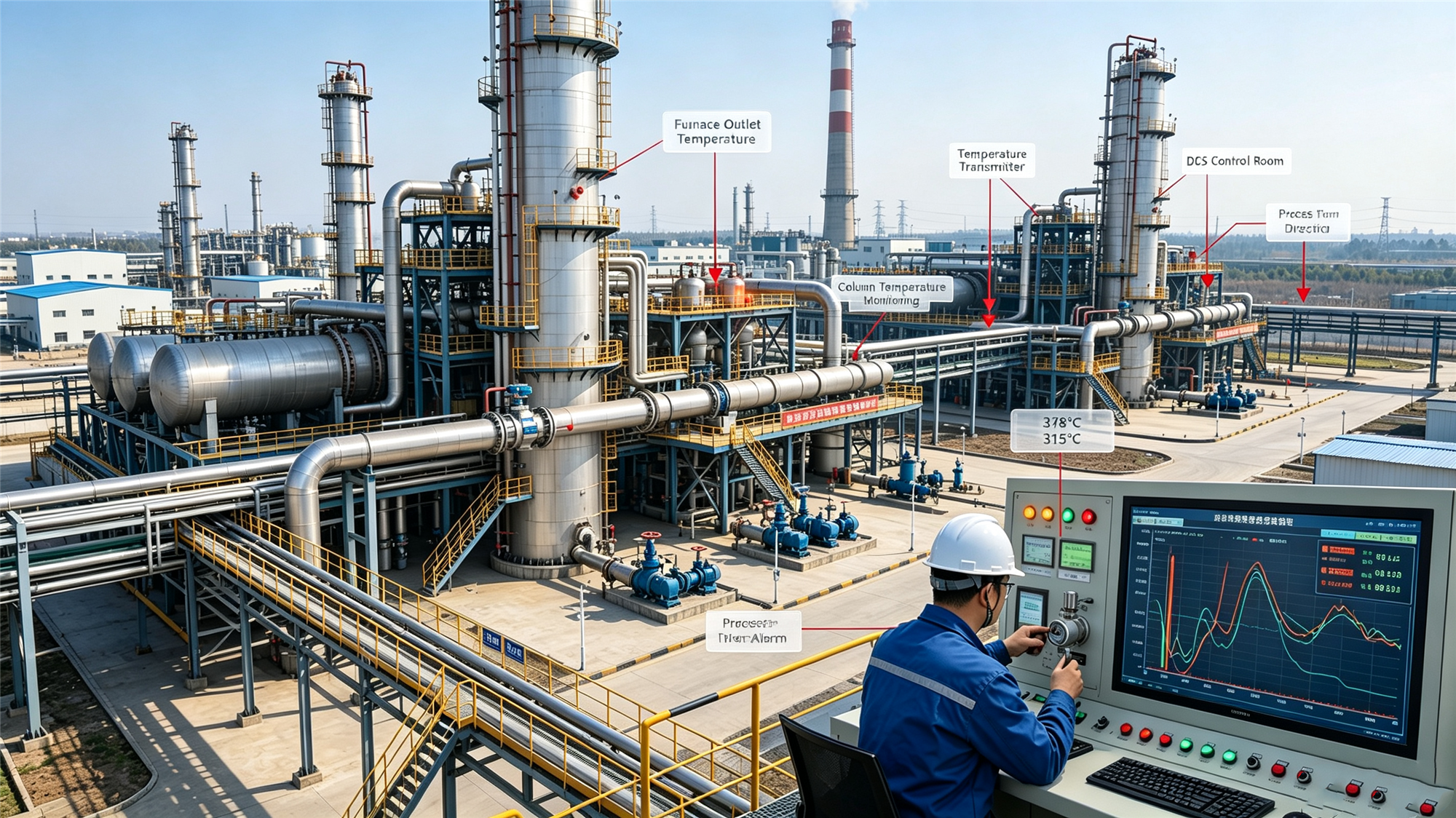

Gulf Pearl Refining Case: Temperature Transmitter for Crude Oil Distillation Furnace and Tower Monitoring
Published On: August 27, 2026
1. Client Profile
Gulf Pearl Refining LLC is a mid-size refinery operator in Ras Al Khaimah, United Arab Emirates, running a 100,000 bpd atmospheric and vacuum distillation unit. The plant supplies naphtha, kerosene, diesel and fuel-oil fractions to regional traders, and its process team identified furnace outlet and tower temperature reliability as a top priority for extending run length between turnarounds.
2. Application Background
Atmospheric and vacuum distillation is the first and most energy-intensive separation step in a crude oil refinery. Temperature is the primary control variable in this process: furnace outlet temperature determines the degree of vaporization, tower top and side temperatures determine product cut quality, and vacuum tower temperatures directly affect residue quality and coking tendency. This case study explains how a temperature transmitter solution is applied across the main measurement points of a typical atmospheric and vacuum distillation unit, and what buyers should specify to get reliable long-term performance.
3. Real Operating Conditions
| Measurement Point | Typical Temperature | Medium / Environment |
|---|---|---|
| Atmospheric furnace outlet | 350-370°C | Crude oil, high velocity, coking tendency |
| Atmospheric tower top | 100-130°C | Naphtha vapor, H2S-containing |
| Atmospheric side draws | 200-360°C | Kerosene and diesel fractions, sulfur compounds |
| Vacuum furnace outlet | 380-420°C | Reduced crude, low pressure, coking risk |
| Vacuum tower flash zone | 380-410°C | Hydrocarbon vapor, sub-atmospheric |
All measurement points are located in classified hazardous areas (typically Zone 1 or Class I Division 1), so the complete measuring loop must match the site's explosion protection requirements.
4. Customer Pain Points
- Furnace outlet thermocouples burn out or drift, forcing operators to raise firing rates without reliable feedback and increasing coking of transfer lines.
- Naphthenic acid and sulfur corrosion attack standard 316L thermowells in the 230-400°C range, causing leaks and unplanned shutdowns.
- Slow sensor response delays detection of coking in the vacuum furnace, reducing residue yield and shortening run length.
- Frequent sensor replacement during turnaround windows consumes scarce maintenance time.
5. Engineering Selection
- Furnace outlet and vacuum transfer line: armored K-type thermocouple with a speed-cap (anti-coking tip) and a heavy-duty thermowell in alloy 800 or 316L with elevated wall thickness, paired with an intelligent integrated temperature transmitter (QW-SLS65) with 4-20 mA output and digital communication.
- Tower top and side streams below 300°C: Pt100 RTD (QW-SLS63, Class A, per IEC 60751) in a 316L thermowell for high accuracy and long-term stability.
- Hazardous area: head-mounted transmitter with explosion-proof or intrinsically safe certification matching the zone classification.
- QW-SLS67 with local display where operators need on-site readout during startup and troubleshooting.
6. Recommended Qinwei Instruments for This Application
| Model | Description | Applied At |
|---|---|---|
| QW-SLS73 | Digital intelligent HART temperature transmitter for petroleum service | Furnace outlet and vacuum transfer line loop conversion |
| QW-SLS62 | IP60 armored thermocouple, corrosion-resistant sheathed | High-temperature furnace outlet sensing with anti-coking tip option |
| QW-SLS63 | Class A Pt100 RTD per IEC 60751 in 316L thermowell | Tower top and side-stream points below 300°C |
| QW-SLS67 | Temperature transmitter with on-site display | Local readout during startup and troubleshooting |
7. Installation Logic
- Install furnace outlet sensors in the transfer line at a 45° upward angle or horizontally with proper support, inserting the thermowell to the pipe centerline for a representative reading.
- Use the speed-cap design at high-velocity points to reduce coke accumulation on the tip, the main cause of slow response and false readings.
- For vertical tower nozzles, choose insertion length so the sensing tip reaches the vapor or liquid zone that actually needs control; avoid dead legs.
- Run shielded twisted-pair cable in separate conduits from power circuits and ground at one end only to prevent noise and ground loops.
- Perform a full loop calibration (sensor + transmitter + DCS input) and document as-built insertion lengths.
8. Application Results
- Stable furnace outlet temperature control reduces transfer-line coking and extends unit run length between turnarounds.
- Corrosion-resistant thermowells survive a full operating cycle, cutting maintenance workload and eliminating leak risks.
- Faster response gives operators early warning of process upsets and improves cut-point control on side streams.
9. Why Choose Qinwei Instruments
Xi'an Qinwei Instrument Factory (brand QINWEIYB) is a manufacturer established in 2010 that specializes in industrial automation instruments, with 500-800 employees and 50%-60% of output exported worldwide. For refinery service, Qinwei supplies explosion-proof and intrinsically safe head-mounted transmitters with 4-20 mA and HART output, corrosion-resistant armored thermocouples, and calibration certificates traceable to national standards. Flexible MOQ (from 1 set), 5-8 working days delivery and OEM/ODM support make Qinwei a practical partner for plant maintenance teams and EPC contractors alike.
10. Purchase Decision Guide
When sourcing temperature transmitters for crude distillation service, specify: sensor element type and accuracy class (Pt100 Class A versus thermocouple), thermowell material and wall thickness (316L versus alloy 800), connection type and insertion length, hazardous area certification, output signal (4-20 mA with digital communication), response time, and calibration certificates traceable to national standards.
