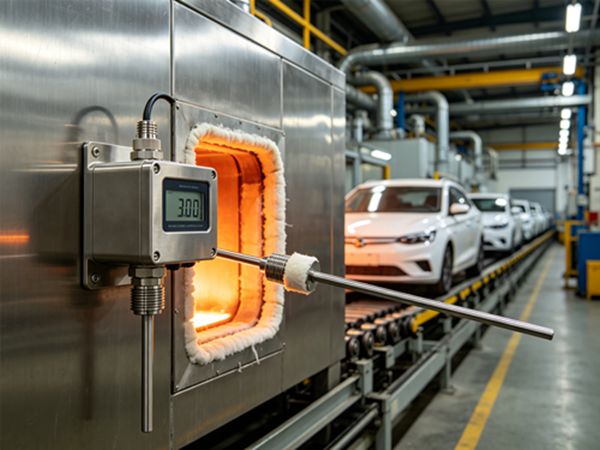

Automotive Temperature Transmitter: EMI-Isolated Welding and Paint Oven Monitoring

Temperature Transmitter for Automotive Manufacturing

Automotive plants combine intense electrical noise with demanding thermal duties. This case covers temperature measurement in a body shop welding cell, a paint-shop curing oven and a powertrain test bench, where a corrupted reading is not a nuisance but a scrap or safety risk.

Real Working Condition

• Robotic welding cell: high-frequency inverter and spot-welding currents create severe electromagnetic interference (EMI).
• Paint curing oven: process air held at roughly 170–200 °C, with transmitters mounted close to the skin.
• Powertrain test bench: coolant and lubricant lines at 40–120 °C on a hot, vibration-heavy rig.
• Moving workpieces: conveyor-borne parts where a contact probe cannot be fitted.

Customer Pain Points

• Noise corruption: thermocouple millivolt signals jumped whenever the welding robot fired, tripping false alarms.
• Ground loops: multiple earthed test rigs produced offsets between channels.
• High ambient: standard electronics derated or failed near the oven wall.
• Wear on moving parts: sliding contact probes wore out quickly on the conveyor.

Engineering Selection

Three models addressed the plant. The QW-SLS72 isolated temperature transmitter supplied high-voltage isolation with strong interference rejection on the welding and test-bench loops. The QW-SLS75 infrared temperature transmitter measured moving conveyor parts without contact. The QW-SLS67 thermal-resistance transmitter handled coolant and lubricant points with a standard Pt100 probe.

Installation Logic

• Isolated channels break ground loops between separately earthed rigs.
• Sensor cable shields bonded at one end only to avoid circulating currents.
• The infrared probe is aimed with clear line of sight and set to the part’s emissivity for correct non-contact readings.
• Transmitters are mounted away from VFD and welding-power cabinets; oven probes use a thermowell rated for the curing temperature.
• Infrared emissivity values are verified against a reference target whenever the part finish changes.

Results

With galvanic isolation the temperature loops stay stable while the welding robots operate, eliminating nuisance trips. The non-contact infrared probe ends the wear problem on conveyor parts, and the emitters tolerate the high ambient near the oven, giving reliable closed-loop control of the curing profile.

Because every channel is isolated, the plant runs the welding cell, the curing oven and the test bench under one monitoring strategy with no cross-talk between loops, and calibration intervals stay predictable instead of being driven by unexplained noise events.

Procurement Decision

Match the isolation voltage and EMC immunity to the plant’s noise level, confirm the thermowell and electronics are rated for the oven or bench temperature, and verify the infrared emissivity range suits the target surface material and finish. For high-vibration rigs, prefer head-mount transmitters with secure strain relief.
